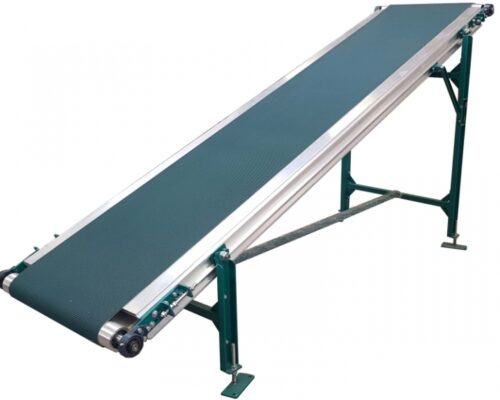

FX-Belt Conveyors
Provide an efficient, reliable, and cost-effective solution for transporting bulk materials or goods across various distances, handling different material types (edible oil seeds, powder/ solid material, special chemical), and optimizing operational processes.
- Gentle horizontal and slight inclined conveying applications.
- Robust construction of conveyor frame
- Ideal for gentle conveying of products such as cottonseed, cotton linter, soyabean seeds, pellets, powder etc.
- Wear and tear are minimal due to specific use of proven materials.
- Long conveying distances and high transport capacities.
- Belt Conveyors can be offered in open or rain-covered design – the belt will typically carry over standard idler stations. A totally enclosed and dust-protected design is also available. For this design the belt is sliding in a U-trough – if needed, the belt can be additionally supported on an air cushion.
- Sidewall Belt Conveyors can handle most bulk materials and offer the advantage of being able to convey horizontal and elevate at a steep angle of incline (up to 90°). For the vertical type a twisted upper to lower conveying direction can be designed. Available in an open or fully enclosed casing
Key Features
Accurately design consideration of belt material and its construction based on application.
Robust torque-optimized gearbox enables efficient power transfer with reduced energy usage.
High-quality Timken, SKF, NTN, FAG, NSK, and Schaeffler bearings ensure optimal belt tension, smooth operation, and durability with minimal maintenance.
Key design considerations over the drive pulley include diameter, material, and surface texture (to avoid slippage), Idler rollers and Tail pulley
Provide smoothly operated Tensioning and take up mechanical arrangement
Consider all safety features (sensors & alarms, Emergency stop and rotating parts safety guard)
Construction and Operations
- Designed for easy and fast tensioning and alignment of the rubber belt, using normal tools
- Designed with a crowned tension pulley to ensure a straight running belt
- Can be delivered with safety equipment such as speed guard and misalignment switch
- Efficient filling of the belt without spilling.
- Designed to allow installation of several inlet hoppers on one belt conveyor
- Fixed or movable version available
- Height adjustable legs for easy and sturdy installation
- A unique design which allows stepless adjustment of the roller sets without the use of tools
- Assembly devices that ensure a straight running belt conveyor
- Free hanging rollers
- Ensures safe guidance of belt and product to outlet
- Duplex or triple roller system depending on belt size
- High capacity compared to the belt width
- Low building height
- Incorporated wheels
- Available in motorised and manual versions
- Designed with optimal safety in mind
- Incorporated diverter in the outlet
- Open or welded execution
- Can be supplied with optional carrier flights to prevent materials from flowing back.
- Oil- and fat resistant belts upon request
- Food grade belt as option
- Delivered with an efficient hollow shaft mounted gear with standard motor
- Designed with a crowned drive pulley to ensure a straight running belt
- Optional lagging drive drum to ensure sufficient friction
- Easy to mount.
- Consists only of a few parts that need assembling
- Easy adjustable to various inclinations
- Can be used for both standing and hanging support
- Inclination in standard range up to 20°
