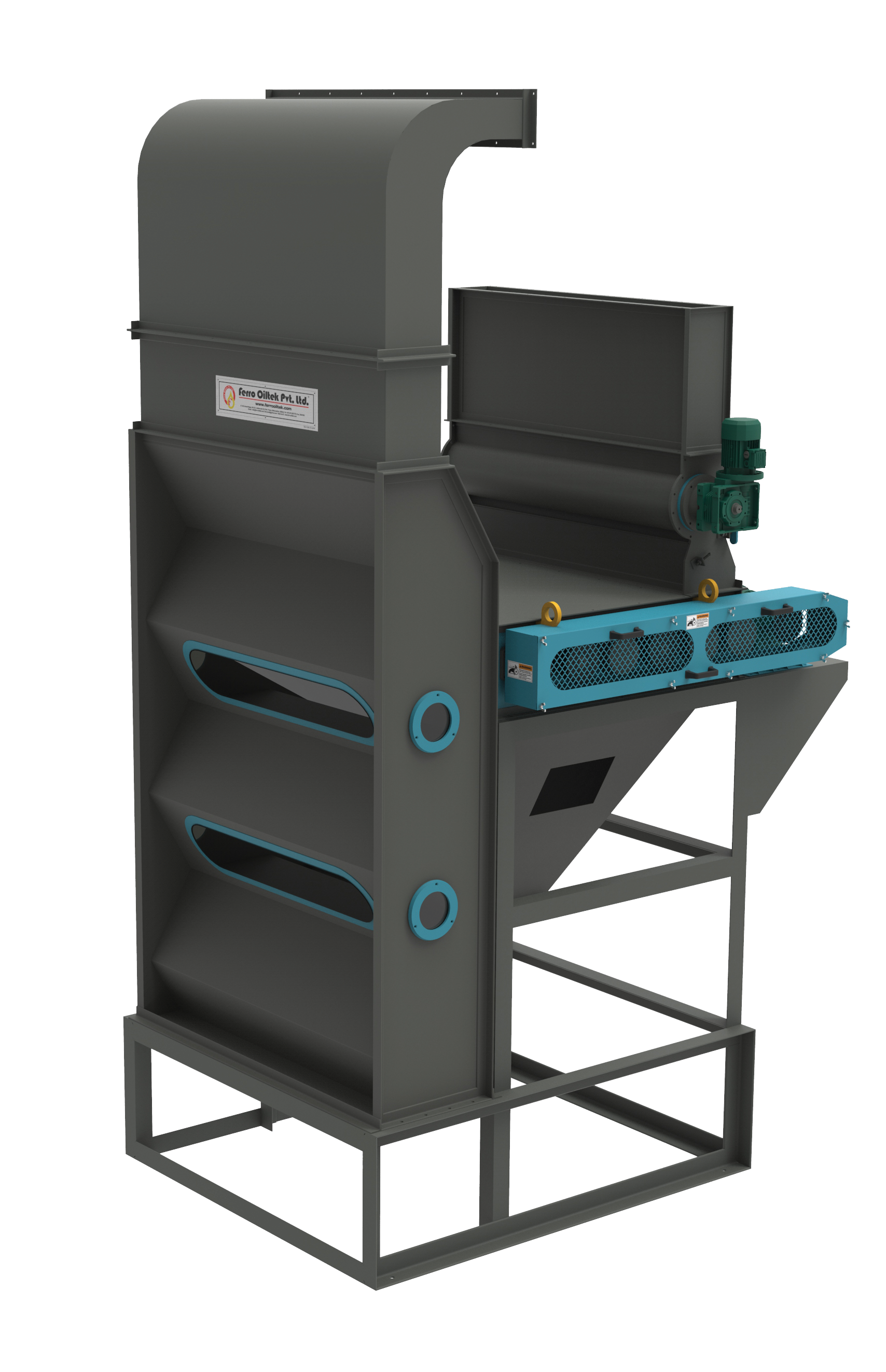

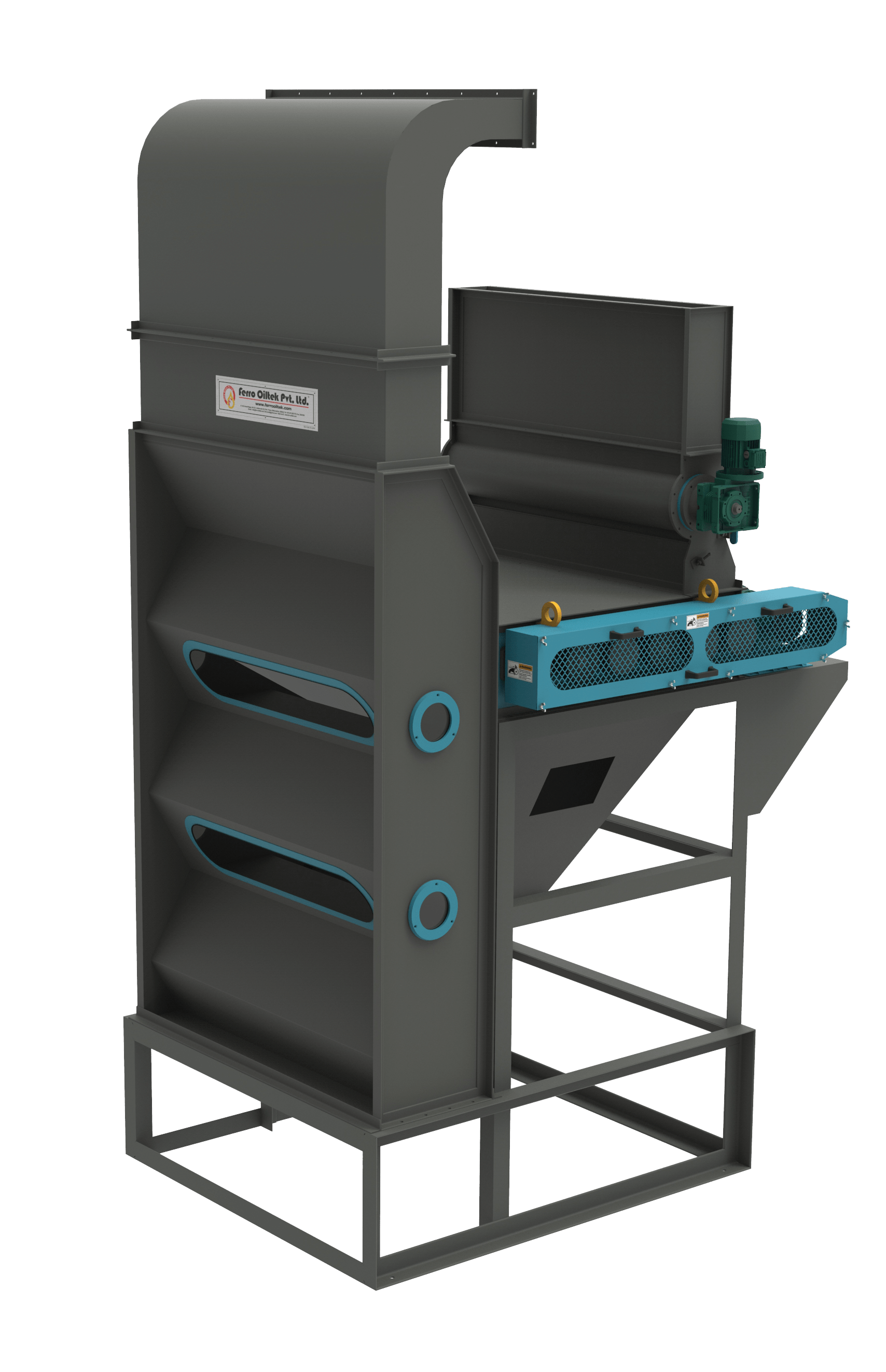

FX-DS : Density Separator
Ferro Density Separator is specially design to allow complete separation of a variety products based on their density. It is the combination of density separator & basket beater separator for better operational results & low oil loss in hulls. The density separator consists of variable speed regulating feeder driven by suitable gear motor. The specially designed inside structure is suitable for separating the uncut seed, large hulls, and meat powder. Equipment is capable to maintain low oil in hulls.
| Technical Specification | ||||||
| Model | Capacity | Motor HP | Dimensions (L x B x H) | |||
|---|---|---|---|---|---|---|
| FX-DS 100 | 100 | 21 HP | 2.8 x 1.6 x 4.8 mtr. | |||
| FX-DS 150 | 150 | 26.5 HP | 2.8 x 1.9 x 4.8 mtr. | |||
| FX-DS 200 | 200 | 32 HP | 2.8 x 1.9 x 4.8 mtr. | |||
| FX-DS 250 | 250 | 250 HP | 3.0 x 1.9 x 4.8 mtr. | |||
Note : The mentioned capacity depends on the input seed parameters.
Key Features
The FX- Density Separator machine is basically use to separate seed shell, Kernal & uncut seed based on density differences.
The reengineered basket beater is precisely fabricated for easy maintenance and smooth opening and closing.
The precise feed rate control ensures through VFD provide optimal accuracy, enhancing the overall efficiency of subsequent operations.
Combines the air cascade separator and basket beater separator, offering enhanced operational results and getting accuracy in separation.
Basket beater driven by VFD ensures precise initial torque control for the compound drive system of basket beaters
The operation results maintain minimal oil in hulls, enhancing product quality and efficiency.
All bearings used in the rotating parts are from leading brands like SKF, NTN, FAG, etc., ensuring minimal power consumption.
Safety guards with limit switches mitigate accident risks from rotating parts by triggering an instant shutdown if opened.
Adjustable Air Damper Allows precise control of air flow for optimal performance.
Built with a robust structure that ensures zero vibration for stable operation.
The PW-type aspiration blower is precisely designed and fabricated, featuring SKF or NTN bearings, along with impeller balancing certificate and 100% QC-Passed results produces high CFM of air.
Zero Speed Sensors ensure precise accidental monitoring for the compound drive system.
