Sunflower Oil Processing Plant – Complete Technical Overview
Sunflower oil is one of the most widely consumed edible oils worldwide due to its light taste, high smoke point, and excellent nutritional profile rich in Vitamin E and unsaturated fatty acids. However, producing premium-quality edible sunflower oil requires advanced processing technology, optimized plant design, and precision engineering.
At Ferro Oiltek Private Limited, we specialize in delivering complete, high-efficiency sunflower seed processing plants that ensure maximum oil recovery, superior oil quality, and optimized operating costs. This article provides a technical overview of the sunflower oil manufacturing process, from seed handling to final refined oil production.

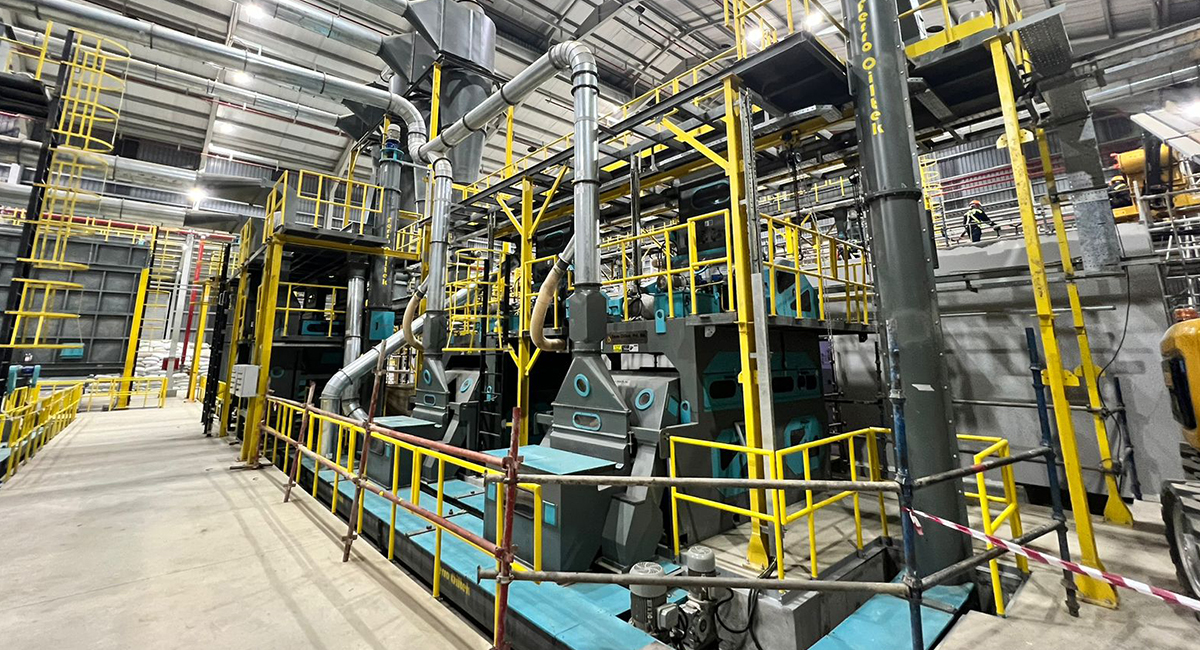

1. Sunflower Seed Cleaning & Preparation
The quality of edible oil begins with proper raw material preparation. Incoming sunflower seeds contain impurities such as dust, stones, metals, and foreign materials that must be removed before processing.
Key Steps in Seed Preparation:
- Pre-cleaning: Removal of large impurities using pre-cleaners and aspiration systems.
- Magnetic Separation: Elimination of ferrous contaminants.
- Dehulling: Improves oil yield, reduces wax content, Enhances meal quality.
- Cracking & Flaking: Seeds are cracked and converted into thin flakes (0.25–0.4 mm thickness) to Increases surface area for efficient oil extraction.
Ferro Oiltek designs seed preparation systems that ensure uniform flake thickness, which directly impacts extraction efficiency and solvent penetration rate.
2. Sunflower Seed Crushing Process
The sunflower seed crushing process is critical in determining oil recovery efficiency. There are two main methods:
A. Mechanical Pressing (Expeller Pressing)
- Suitable for small to medium-capacity plants.
- Operates using high mechanical pressure.
- Oil recovery: 85–90%
- Residual oil in cake: 6–8%
- Higher throughput
- Reduced power consumption
- Long-lasting wear components
B. Solvent Extraction Process (Preferred for Large Plants)
For higher oil recovery, the sunflower seed oil extraction method commonly uses solvent extraction.
Process Overview:
- Prepared flakes enter the extractor.
- Food-grade solvent (typically hexane) dissolves the oil.
- Miscella (oil + solvent mixture) is separated.
- Distillation system recovers solvent.
- Desolventizer-Toaster (DTDC) removes solvent from meal.
- Optimized extractor geometry
- Efficient solvent recovery systems
- Advanced safety systems
- Low steam and power consumption
3. Crude Sunflower Oil Characteristics
Crude sunflower oil contains:
- Phospholipids (gums)
- Free Fatty Acids (FFA)
- Waxes
- Pigments (carotenoids, chlorophyll traces)
- Trace metals
To produce high-quality edible oil, refining is essential.
4. Sunflower Oil Refining Process
The sunflower oil refining process ensures that the final product meets international edible oil standards.
A. Degumming
- Removal of phospholipids using water or acid treatment.
- Prevents dark color formation during heating.
B. Neutralization
- FFA removal using caustic soda.
- Reduces acidity and improves stability.
C. Bleaching
- Adsorption process using bleaching earth.
- Removes pigments and trace contaminants.
D. Dewaxing (Winterization – Critical for Sunflower Oil)
- Oil is cooled gradually.
- Waxes crystallize and are filtered out.
- Ensures clear oil even under refrigeration.
E. Deodorization
- Steam distillation under high vacuum.
- Removes odor-causing compounds.
- Enhances shelf life.
- Energy-efficient heat recovery systems
- High-vacuum deodorization technology
- Advanced automation controls
- Consistent low FFA and low color output
5. Process Optimization for Maximum Yield
To achieve superior performance in edible sunflower oil production, several technical factors must be controlled:
- Moisture content of seeds (Optimal: 6–8%)
- Flake thickness uniformity
- Cooker temperature profile
- Solvent-to-solid ratio
- Vacuum level in deodorizer
- Cooling curve in dewaxing section
Ferro Oiltek integrates process engineering expertise with automation systems to ensure stable, optimized performance with minimal operator intervention.
6. Quality Parameters of Refined Sunflower Oil
High-quality refined sunflower oil should meet:
- FFA: <0.1%
- Moisture: <0.1%
- Peroxide Value: Within edible standards
- Clear appearance after dewaxing
- Neutral odor and taste
Our turnkey plants are designed to consistently meet international food safety and export standards.
7. Why Choose Ferro Oiltek for Sunflower Oil Manufacturing?
As a globally recognized leader in edible oil processing plant machinery, Ferro Oiltek offers:
- Complete turnkey sunflower oil manufacturing plants
- Customized capacities (small to large-scale industrial plants)
- Advanced solvent extraction systems
- High-efficiency refining and dewaxing technology
- Low utility consumption design
- Strong after-sales and technical support
- Higher oil recovery
- Lower operating cost
- Enhanced product quality
- Faster ROI for investors
