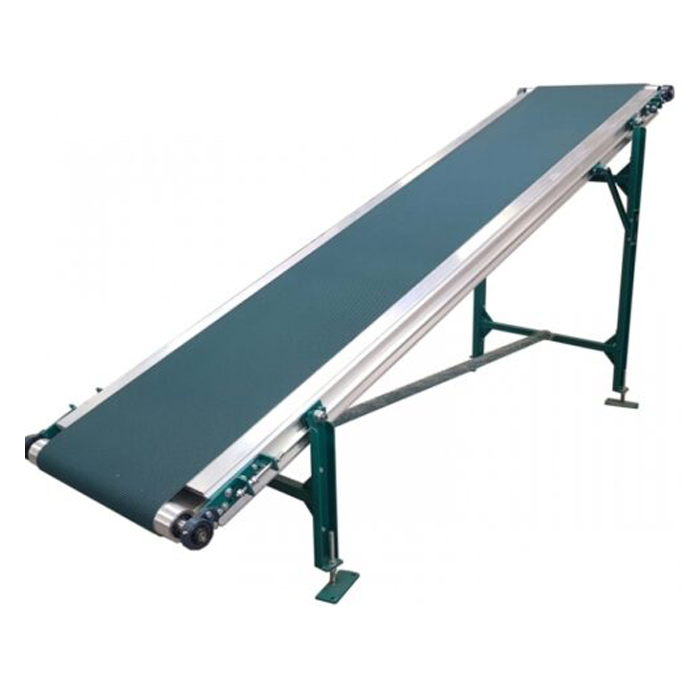

FX-Belt Conveyors

  • Gentle horizontal and slight inclined conveying applications.
  • Ideal for gentle conveying of products such as cottonseed, cotton linter, soyabean seeds, pellets, powder etc.
  • Wear and tear are minimal due to specific use of proven materials
  • Long conveying distances and high transport capacities.
  • Belt Conveyors can be offered in open or rain-covered design – the belt will typically carry over standard idler stations. A totally enclosed and dust-protected design is also available. For this design the belt is sliding in a U-trough – if needed, the belt can be additionally supported on an air cushion.
  • Sidewall Belt Conveyors can handle most bulk materials and offer the advantage of being able to convey horizontal and elevate at a steep angle of incline (up to 90°). For the vertical type a twisted upper to lower conveying direction can be designed. Available in an open or fully enclosed casing
Quick Enquiry
1. TENSION STATION :
  • Designed for easy and fast tensioning and alignment of the rubber belt, using normal tools
  • Designed with a crowned tension pulley to ensure a straight running belt
  • Can be delivered with safety equipment such as speed guard and misalignment switch
2. INLET HOPPERS :
  • Efficient filling of the belt without spilling.
  • Designed to allow installation of several inlet hoppers on one belt conveyor
  • Fixed or movable version available
3. INTERMEDIATE SECTIONS :
  • Height adjustable legs for easy and sturdy installation
  • A unique design which allows stepless adjustment of the roller sets without the use of tools
  • Assembly devices that ensure a straight running belt conveyor
4. CARRIER ROLLERS :
  • Free hanging rollers
  • Ensures safe guidance of belt and product to outlet
  • Duplex or triple roller system depending on belt size
  • High capacity compared to the belt width
5. DISCHARGE CAR :
  • Low building height
  • Incorporated wheels
  • Available in motorised and manual versions
  • Designed with optimal safety in mind
  • Incorporated diverter in the outlet
6. BELT :
  • Open or welded execution
  • Can be supplied with optional carrier flights to prevent materials from flowing back.
  • Oil- and fat resistant belts upon request
  • Food grade belt as option
7. DRIVE STATION :
  • Delivered with an efficient hollow shaft mounted gear with standard motor
  • Designed with a crowned drive pulley to ensure a straight running belt
  • Optional lagging drive drum to ensure sufficient friction
8. SUPPORTING LEGS :
  • Easy to mount.
  • Consists only of a few parts that need assembling
  • Easy adjustable to various inclinations
  • Can be used for both standing and hanging support
  • Inclination in standard range up to 20°
