FX-Chain Conveyors

Engineered for low maintenance and high reliability, making them ideal for extreme industrial conditions.
Modular design allows for flexible layout configurations to accommodate various plant layouts.
Round-bottom design ensures complete cleanout, preventing material buildup and reducing contamination risks.
Explosion-proof options available for hazardous environments, ensuring compliance with safety regulations.
Optimized chain and sprocket configurations reduce wear and enhance longevity, even under high-load applications.
Precision-engineered tensioning and alignment systems ensure smooth, efficient operation with minimal downtime.

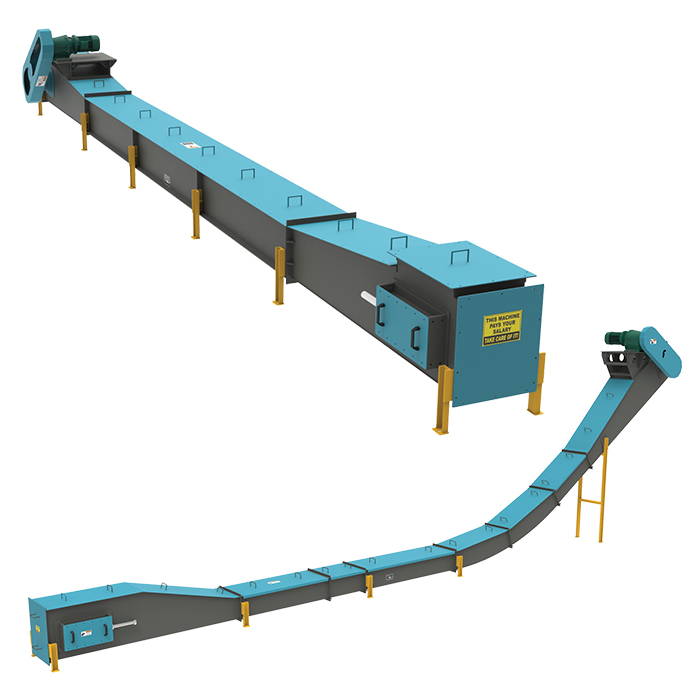

Types of Chain Conveyors:

Horizontal Chain Conveyors (Redler Conveyors): Suitable for bulk materials.
Inclined Chain Conveyors (Bulk Flow Conveyors) : Efficient inclined transport with high capacity.

FX-Horizontal Chain Conveyors (Redler Conveyor)
Model		Conveying speed																	Unit
Model		0.2	0.225	0.25	0.275	0.3	0.325	0.35	0.375	0.4	0.425	0.45	0.475	0.50	0.55	0.60	0.65	0.70	m/s
FX-MH-RC7/14	Q	21	24	27	29	32	35	37	40	43	45	48	51	53	59	64	69	75	m³/h
FX-MH-RC10.5/14	Q	32	36	40	44	48	52	56	60	64	68	72	76	80	88	96	104	112	m³/h
FX-MH-RC11.5/18.5	Q	48	54	60	66	72	78	84	90	96	101	107	113	119	131	143	155	167	m³/h
FX-MH-RC13/20	Q	62	69	77	85	92	100	108	116	123	131	139	146	154	170	185	200	216	m³/h
FX-MH-RC16/20	Q	75	84	93	103	112	121	131	140	149	159	168	177	187	206	224	243	262	m³/h
FX-MH-RC20/20	Q	93	105	117	128	140	152	163	175	187	199	210	222	234	257	280	304	327	m³/h
FX-MH-RC25/26	Q	123	138	153	169	184	199	215	230	245	260	276	291	306	337	368	398	429	m³/h
FX-MH-RC31.5/26	Q	196	221	245	270	294	319	343	368	392	417	441	466	490	539	588	637	686	m³/h
FX-MH-RC31.5/31.5	Q	244	275	305	336	366	397	427	458	488	519	549	580	610	671	732	793	854	m³/h
FX-MH-RC40/26	Q	245	276	306	337	368	398	429	460	490	521	552	582	613	674	735	797	858	m³/h

FX-Inclined Chain Conveyors (Bulk Flow Conveyor)
Model No.		Conveying speed																	Unit
Model No.		0.2	0.225	0.25	0.275	0.3	0.325	0.35	0.375	0.4	0.425	0.45	0.475	0.50	0.55	0.60	0.65	0.70	m/s
FX-MH-BF8/12	Q	14	16	18	19	21	23	25	26	28	30	32	33	35	39	42	46	49	m³/h
FX-MH-BF11.5/12	Q	22	25	27	30	33	36	38	41	44	47	49	52	55	60	66	71	77	m³/h
FX-MH-BF13/16	Q	33	37	42	46	50	54	58	62	67	71	75	79	83	91	100	108	116	m³/h
FX-MH-BF16/20	Q	54	61	68	74	81	88	95	101	108	115	122	128	135	149	162	176	189	m³/h
FX-MH-BF20/20	Q	68	76	84	93	101	110	118	127	135	143	152	160	169	186	203	219	236	m³/h
FX-MH-BF26/20	Q	86	97	108	119	130	140	151	162	173	184	194	205	216	238	259	281	302	m³/h
FX-MH-BF26/24	Q	104	117	130	143	156	168	181	194	207	220	233	246	259	285	311	337	363	m³/h
FX-MH-BF32/24	Q	131	148	164	180	197	213	230	246	262	279	295	312	328	361	394	426	459	m³/h
FX-MH-BF32/28	Q	153	172	191	210	230	249	268	287	306	325	344	364	383	421	459	498	536	m³/h
FX-MH-BF36/32	Q	194	219	243	267	292	316	340	365	389	413	437	462	486	535	583	632	680	m³/h
FX-MH-BF40/40	Q	270	304	338	371	405	439	473	506	540	574	608	641	675	743	810	878	945	m³/h
