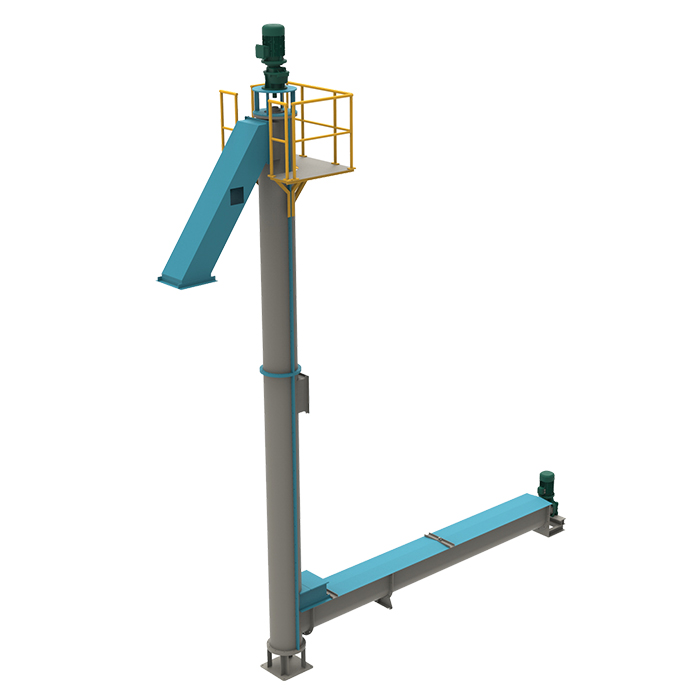

FX-Rotor Lift

Rotor lifts are an efficient method for elevating a variety of bulk materials from steep inclines to completely vertical. The compact design allows the vertical screw conveyor to fit almost any plant layout. With minimum moving parts, the vertical screw conveyor is a cost-effective and dependable component of any bulk material handling process.

Ferro designs Rotor lift to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Wood Products and Wastewater Treatment.

Ferro Rotor lifts are available in many configurations. Inlet sections can be offset to either side or can be in-line. Horizontal feed conveyors are required to accurately meter bulk materials directly to the vertical conveyor’s inlet for maximum efficiency.

Quick Enquiry

FX-Rotor Lift
Model No.	Rotor-lift Diameter (mm)	Nominal Rated Capacity (m³/h)	RPM
FX-MHRL250	250	0.054	130-150
FX-MHRL300	300	0.11	130-150
FX-MHRL350	350	0.16	130-150
FX-MHRL400	400	0.26	130-150
FX-MHRL450	450	0.38	130-150
FX-MHRL500	500	0.49	130-150

The minimum of stagnant material as often found in a bucket elevator boot.
A highly efficient transfer of materials from horizontal to vertical conveying.
The savings of valuable floor space and less overall height required.
Positive material discharge in any desired direction.
No material segregation or significant degradation throughout the continuing process.
Material does not encounter seals or bearings, and the only part contacting material is rotating screw.

Motor Mount
High-Capacity Thrust Bearing
Discharge Head can be assembled at any angle
Stabilizer Bearing
High Speed Vertical Screw
Special Pitch Tapered Double Flighting
Expander Feeder Junction
Synchronized (horizontal-vertical) Material Transfer
Horizontal Feeder Screw for Metering
Bottom Base
