AUTOMATIC DISCHARGE CENTRIFUGES
The MACFUGE disks centrifuges with automatic discharge are designed and built to separate a mixture of liquids having different specific weight and a solid.
The bowl “self-cleaning” or “with automatic discharge” means the capacity of the centrifuge to eject the solids, which have been separated from the liquids, using an hydraulic system in the bowl bottom, while running at full speed.
These machines are simple and offer different configurations according to process requirements. The MACFUGE centrifuges are reliable, user-friendly, easy to dismount for the maintenance and cleaning and allow their use in any process industry that requires fluids separation.
They can be manufactured in any material and to work in areas classified CE-ATEX. Within the range of MACFUGE with automatic discharge of small size, we have MACFUGE MODULAR SYSTEMS.

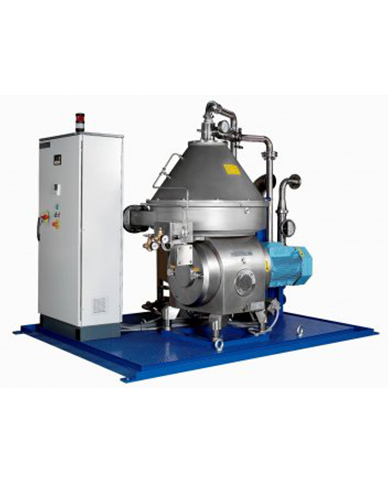

Each system is a complete plug-and-play module skid mounted, they are small, transportable units for fluids separation, clarification and purification on a small scale.
The product to be separated enters inside of the bowl via fixed feed pipe. The discharging function are executed at different time intervals pre-determined by the operator through a PLC, in the control panel. The opening time (volume discharged) and the discharge frequency, are regulated by setting the times of opening and closing of the solenoid valves. Depending from the time setting, the machine is ready to achieve both partial and total discharge of the bowl content.
The efficiency of the centrifuge depends on the characteristics of the mixture to be separated; viscosities, temperature, amount of solid and the difference between the densities of the various phases, are parameters that can significantly affect the separation.
POWER GENERATION – OIL & GAS – MARINE – BIODIESEL – VEGETABLE OILS REFINERY – CHEMICAL PRODUCTS – FOOD PRODUCTS – PHARMACEUTICAL – SOAPS – DAIRY – BREW – JUICE
We have a great experience in the treatment of products with different characteristics and requirements, due to the knowledge accumulated by our Technical Department in the study of specific projects for each client.
| Bowl | Rotation speed 9.600 rpm |
| Motor | Power 3 Kw |
| Dimensions | mm 370 X 680 X h. 780 |
| Bowl | Rotation speed 8.500 rpm |
| Motor | Power 5,5 Kw |
| Dimensions | mm 600 X 900 X h. 1200 |
| Bowl | Rotation speed 7.600 rpm |
| Motor | Power 15 Kw |
| Dimensions | mm 760 X 1250 X h. 1600 |
| Bowl | Rotation speed 5.800 rpm |
| Motor | Power 22 Kw |
| Dimensions | mm 1000 X 1500 X h. 2000 |
| Bowl | Rotation speed 4.700 rpm |
| Motor | Power 37÷45 kW |
| Dimensions | mm 1050 X 2000 X h. 2100 |
| Bowl | Rotation speed 4.800 rpm |
| Motor | Power 30 kW |
| Dimensions | mm 1300 x 1900 x h. 2300 |
| Bowl | Rotation speed 5.300 rpm |
| Motor | Power 30 KW |
| Dimesions | mm 1300 X 1900 X h. 2300 |
