SEED PROCESSING
FX-DSMB : MOTE BEATER
- It is uniquely designed with unrivalled in efficiency with handling capacity up to 200 TPD (white cotton seed basis).

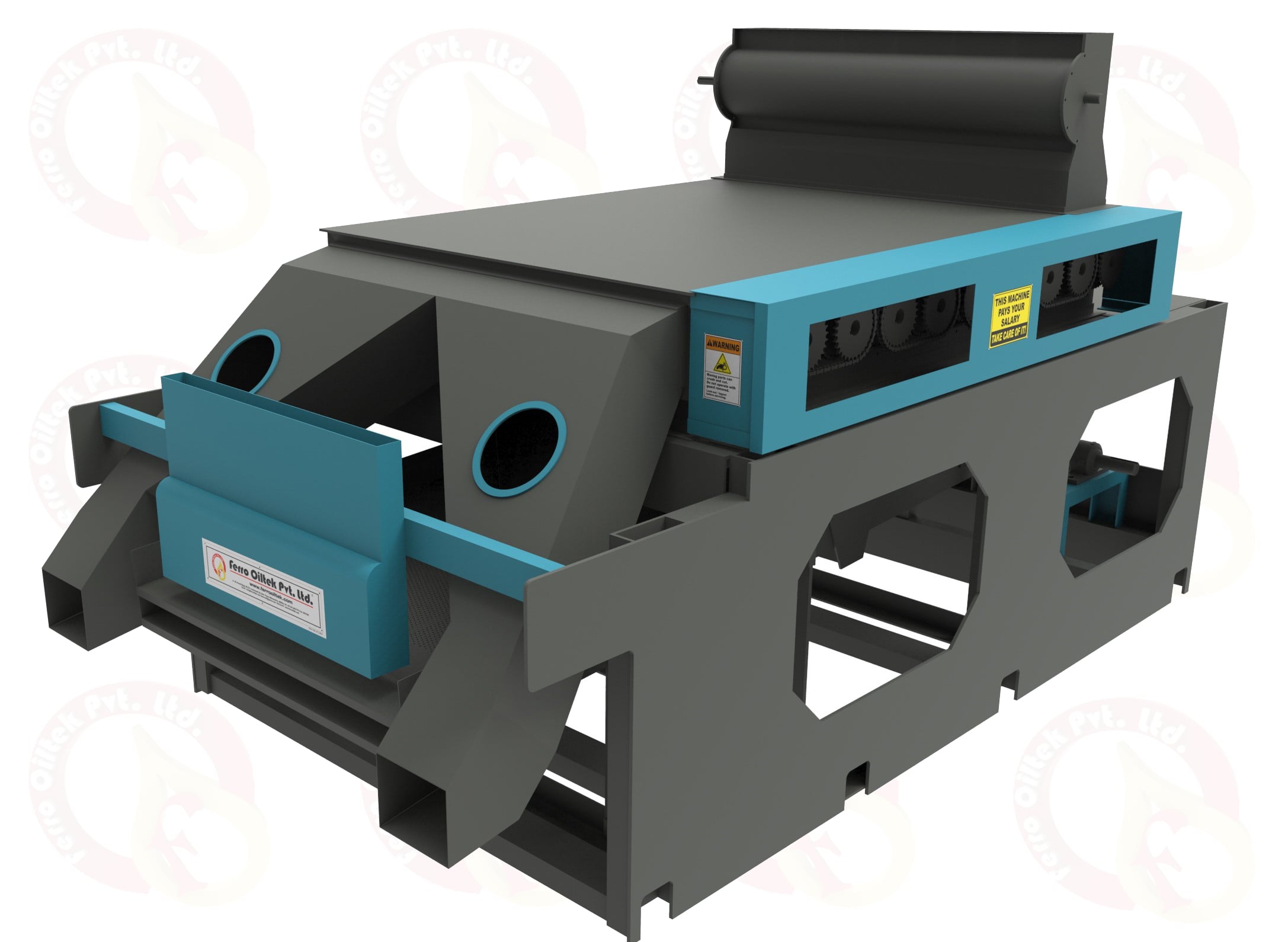

- The machine consists of 10 basket beater section mounted above a shaker tray.
- The beater improves cleaning quality of bi-product of cottonseed.
- The mote beater machine operating with combines mechanically & pneumatically so we get effective separation at the end.
MOTE BEATER OPERATION :
- Proven design for high efficiency.
- Heavy duty eccentric used for long life & smooth operation.
- Reengineered for better working performance.
- Heavy duty body structures give zero vibration.
- Common motor drive for all basket beaters

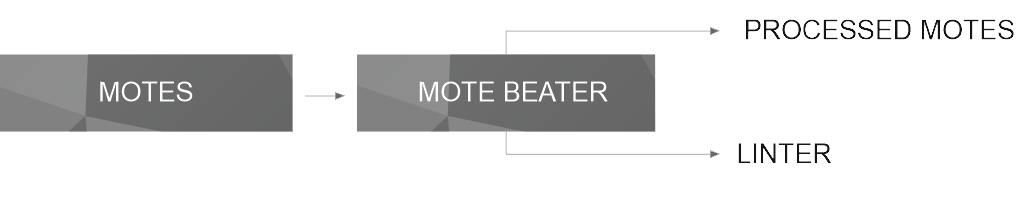

- The motes which are coming from bottom conveyor of Delinter, those are feeded into the beating section of mote the separated lint is taken to lint cleaner through a aspiration system. Because the market value of linters is high & also we clean mote here, so that's why we need mote beater section.
- First the motes are beaten at beating section for removing of dust & separation of lint. After that some lint, fine dust & some motes drop on shaker tray through basket screen & here by shaking separation is carried out.
- FEEDER MOTOR - 1HP/4 POLE
- SHAKER MOTOR - 2HP/4 POLE
- BEATER MOTOR - 5HP/4 POLE
- INSPECTION WINDOWS
