SEED PROCESSING
FX-PCAC: Air Cascade Pre-Cleaner
This machine is a combination of density separator and basket beater separator for better Read More
Seed Processing

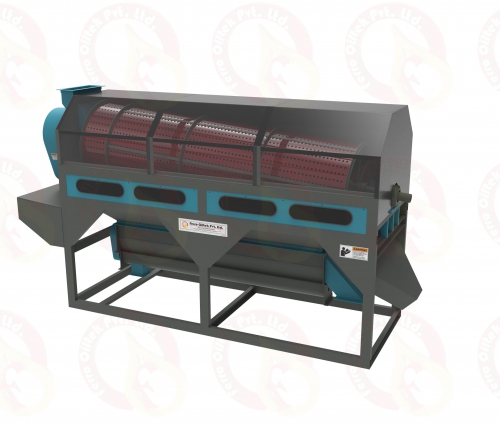

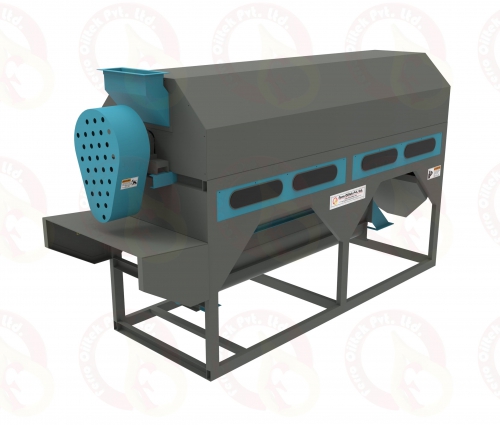

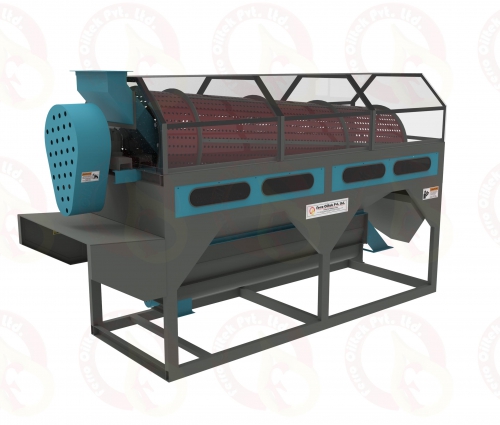

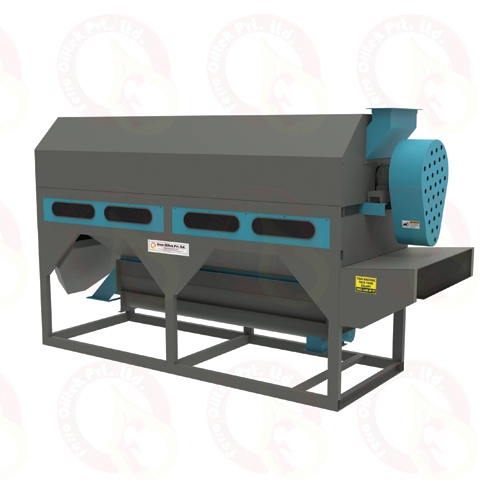

FX-PCRD: ROTARY DRUM PRE-CLEANER
The Ferro Rotary Drum pre-cleaner is designed especially For handling the high contamination in cotton seed comes from ginning. It is capable of pre-cleaning the Un-Ginned Cotton Balls, Leaves, Trashes, Suspended Plastics, Bigger Impurities and Fine Dust.
Suitable For :
- Removing all type of Impurities (Bigger and Fine) from Seeds.
- And also it can be used for all types of seeds only by changing the screen size of Pre-Cleaner Machine.
- FEEDER MOTOR - 2HP/4 POLE
- ROTARY DRUM - 7.5HP/6 POLE
- SCREW CONVEYOR - 3HP/4 POLE
The cotton seed will be Feed through a rotary feeder, from the mouth of inclined rotary drum. The seed moves in rotary action and simultaneously meshed down the seed into bigger impurities (cotton leaves, sticks, un-ginned cotton, threads, etc.) gets collected at end hopper. Further meshed down seeds are conveying through specially designed double deck conveyor. which used to mesh down the fine impurities (dust & other particles) and the remaining clean seeds gets collected at discharged end.
- .
