FX-Bucket Elevators

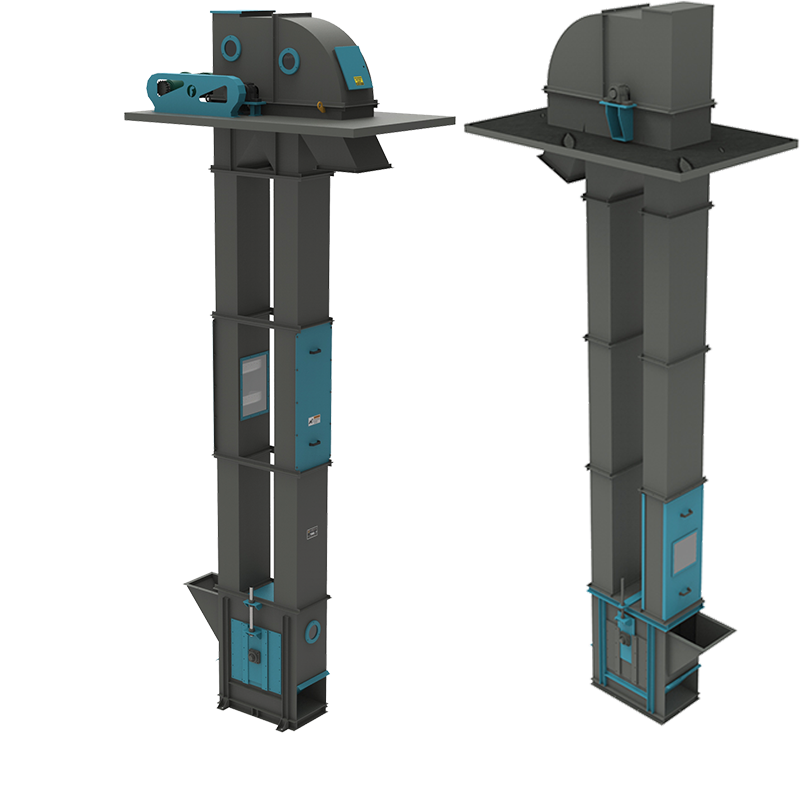

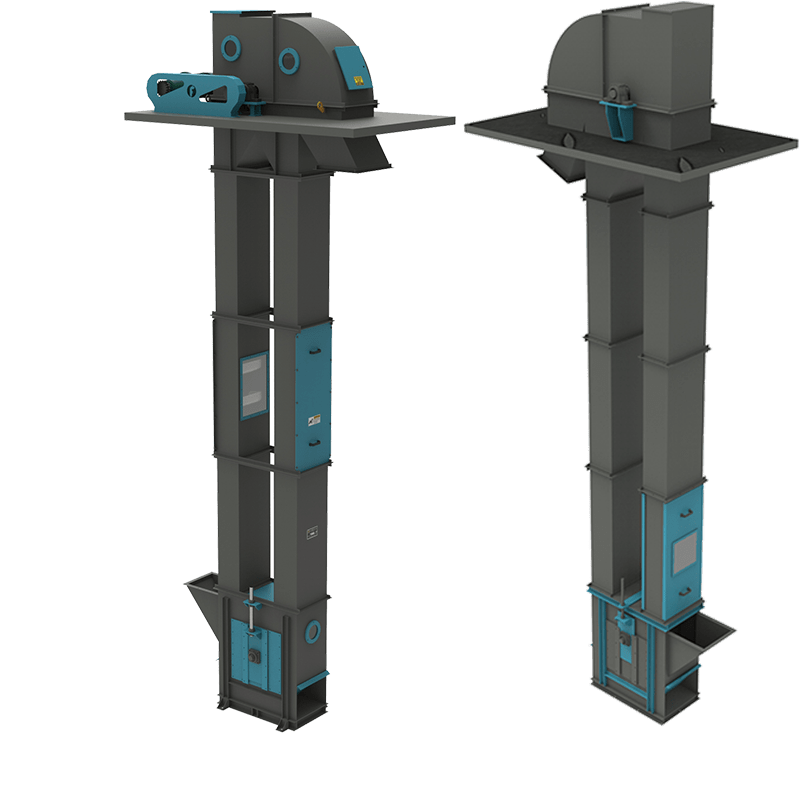

The easiest way of vertical transportation for various bulk materials with high volume throughput. Available as Belt or Chain Bucket Elevators. Optionally supplied with safety devices for the detection of misalignment, bearing temperature and zero-speed. Together with different available pressure relief systems a safe operation is guaranteed, especially when used in hazardous areas.
- Robust construction of bucket elevator frame
- Vertical transport of materials
- High degree of durability, safety features and low power consumption in relation to its capacity.
- Highly resistant to wear and is suitable for both indoor and outdoor use.
- Component selection as per the client’s specific requirement and due understanding of application.
| Technical Specification | |||||||
| Model | Belt Width | Pulley Ø (mm) | Pitch | Bucket Size | Net Volume (m3) | Nominal Capacity (m3/h) | RPM |
|---|---|---|---|---|---|---|---|
|
FX-MH-BBE-150/420 |
150 |
420 |
200 |
5 x 4.75 |
0.0005 |
0.012 |
60 |
|
FX-MH-BBE-200/420 |
200 |
420 |
200 |
6 x 4.75 |
0.0006 |
0.014 |
60 |
|
FX-MH-BBE-200/520 |
200 |
520 |
200 |
7 x 4.75 |
0.0007 |
0.021 |
60 |
|
FX-MH-BBE-250/520 |
250 |
520 |
250 |
8 x 5.25 |
0.0011 |
0.026 |
60 |
|
FX-MH-BBE-300/520 |
300 |
520 |
300 |
10 x 6 |
0.0019 |
0.037 |
60 |
|
FX-MH-BBE-350/520 |
350 |
520 |
300 |
12 x 6 |
0.0022 |
0.043 |
60 |
|
FX-MH-BBE-350/620 |
350 |
620 |
300 |
12 x 8 |
0.0034 |
0.08 |
60 |
|
FX-MH-BBE-450/620 |
450 |
620 |
350 |
16 x 8 |
0.0048 |
0.096 |
60 |
|
FX-MH-BBE-150/420 |
450 |
620 |
350 |
16 x 8 E |
0.007 |
0.140 |
60 |
Key Features
Accurately design consideration of bucket size based on capacity
Provide smoothly operated Tensioning and take up mechanical arrangement.
Key design considerations over the drive pulley include diameter, material, and surface texture (to avoid slippage), Idler rollers and Tail pulley
High-quality Timken, SKF, NTN, FAG, NSK, and Schaeffler bearings ensure optimal belt tension, smooth operation, and durability with minimal maintenance.
Robust torque-optimized gearbox enables efficient power transfer with reduced energy usage.
Supplied with safety devices for the detection of misalignment, bearing temperature and zero-speed.
Quick Enquiry About This Product
Interested in this product for your project? Share your requirements, and our technical team will get back to you with detailed specifications, pricing, and availability. We're here to support your project's success with the right technology and expertise.
Plan vertical lifting and the discharge connection
Bucket elevators lift compatible bulk materials vertically using a continuous series of buckets. In an oilseed or meal-handling line, the elevator must be considered together with the feed conveyor, inlet chute, head discharge and downstream equipment, rather than as an isolated machine.
Information for equipment selection
Send the lift height, normal and peak capacity, bulk density, particle size and material condition. Explain any restrictions on seed damage, dust release or carryover. Include the available footprint, maintenance access at the boot and head, supporting structure and the discharge elevation needed by the receiving equipment. Final bucket, belt or chain selection and protection devices require an engineering review.
Related equipment and process stages
Bulk material handling system designer | Screw conveyors | Redler and bulk-flow conveyors | Pneumatic conveying | Oilseed preparation | Solvent extraction
Project questions
What information is needed for an elevator quotation?
Provide the material, capacity, vertical lift, inlet and outlet positions, operating hours and available installation drawing. Include moisture and temperature where they affect handling.
Can one elevator handle different materials?
That requires a review of each material and the changeover procedure. Differences in bulk density, flowability and product-cleanliness requirements can change the equipment selection.
