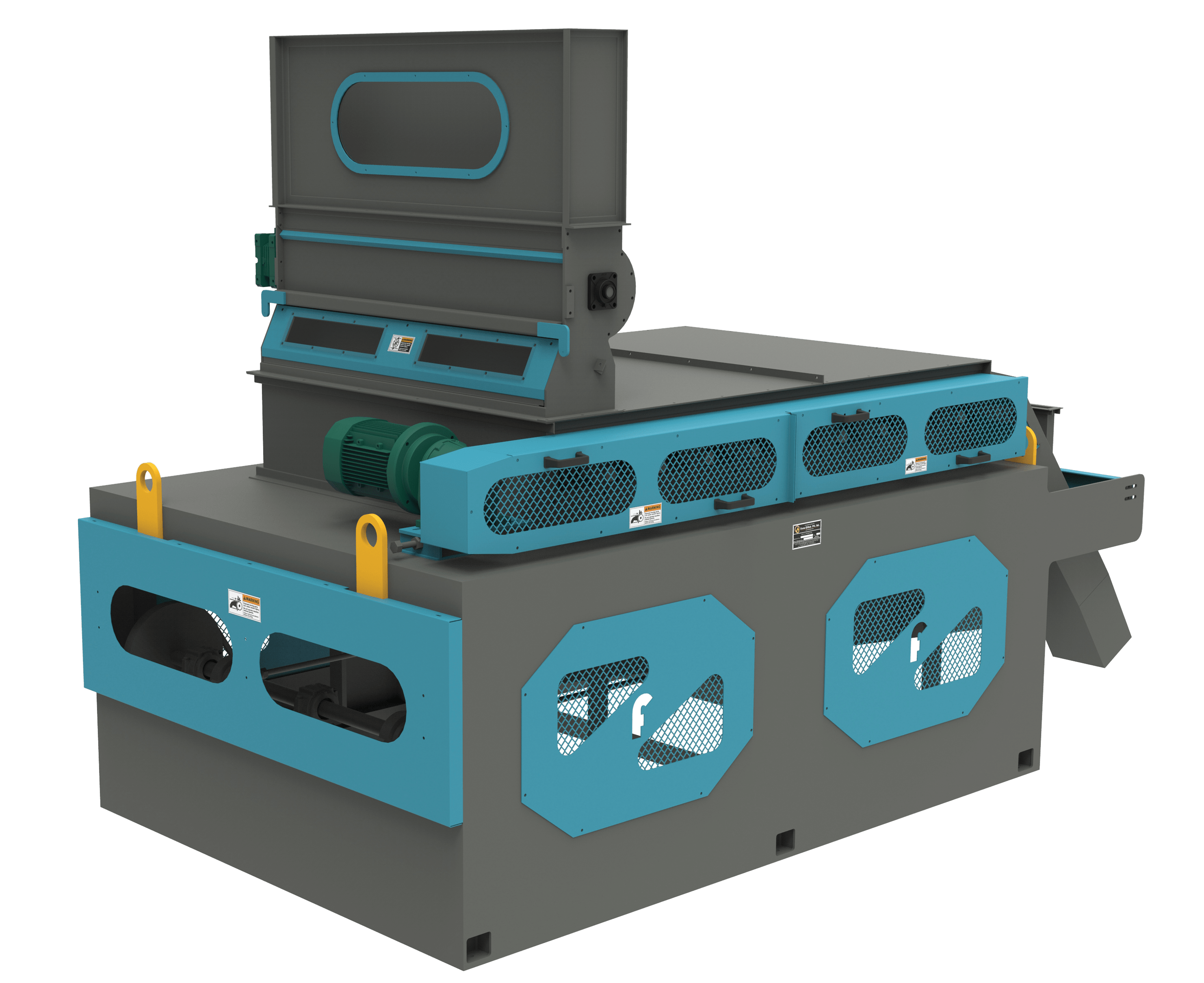

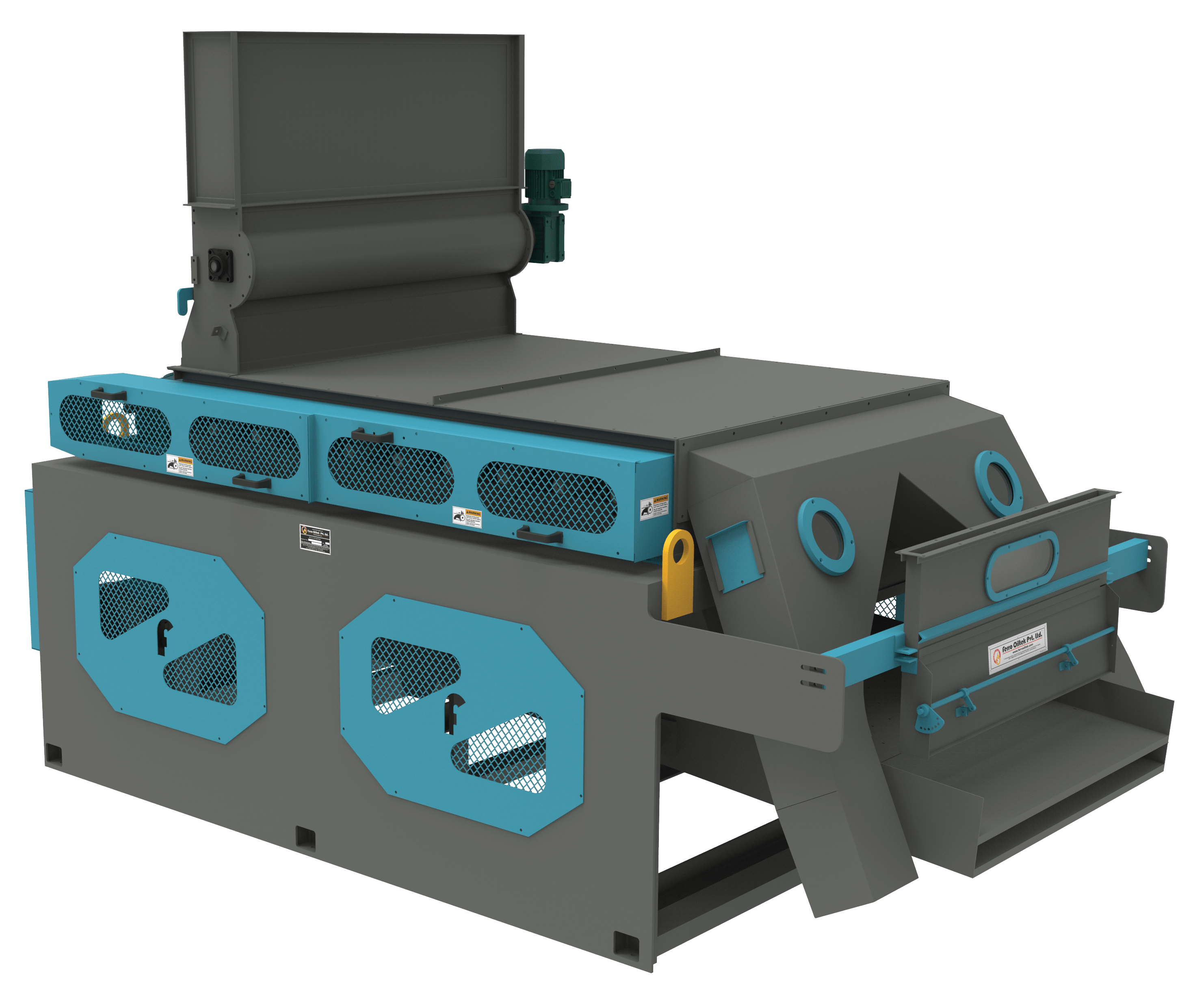

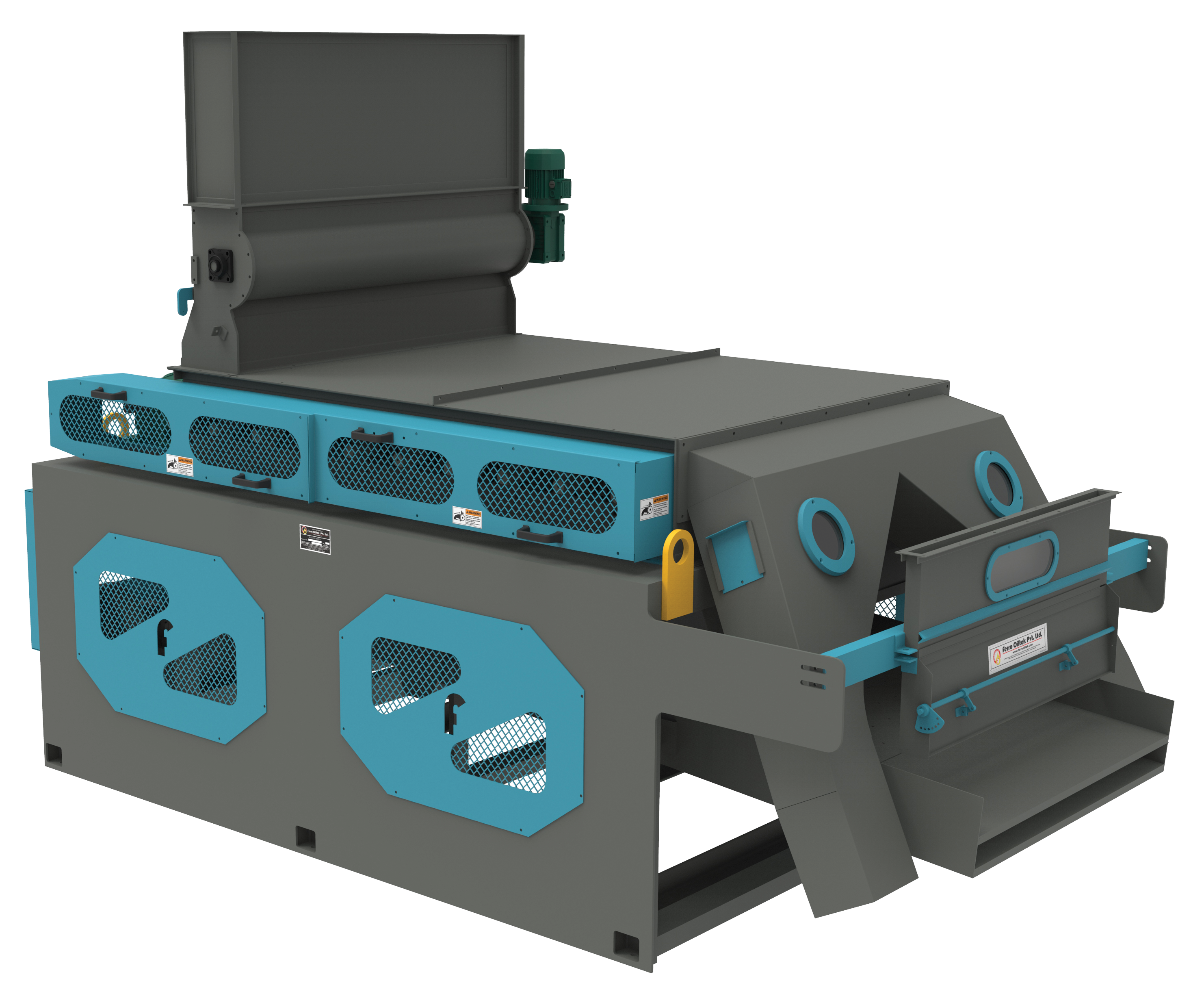

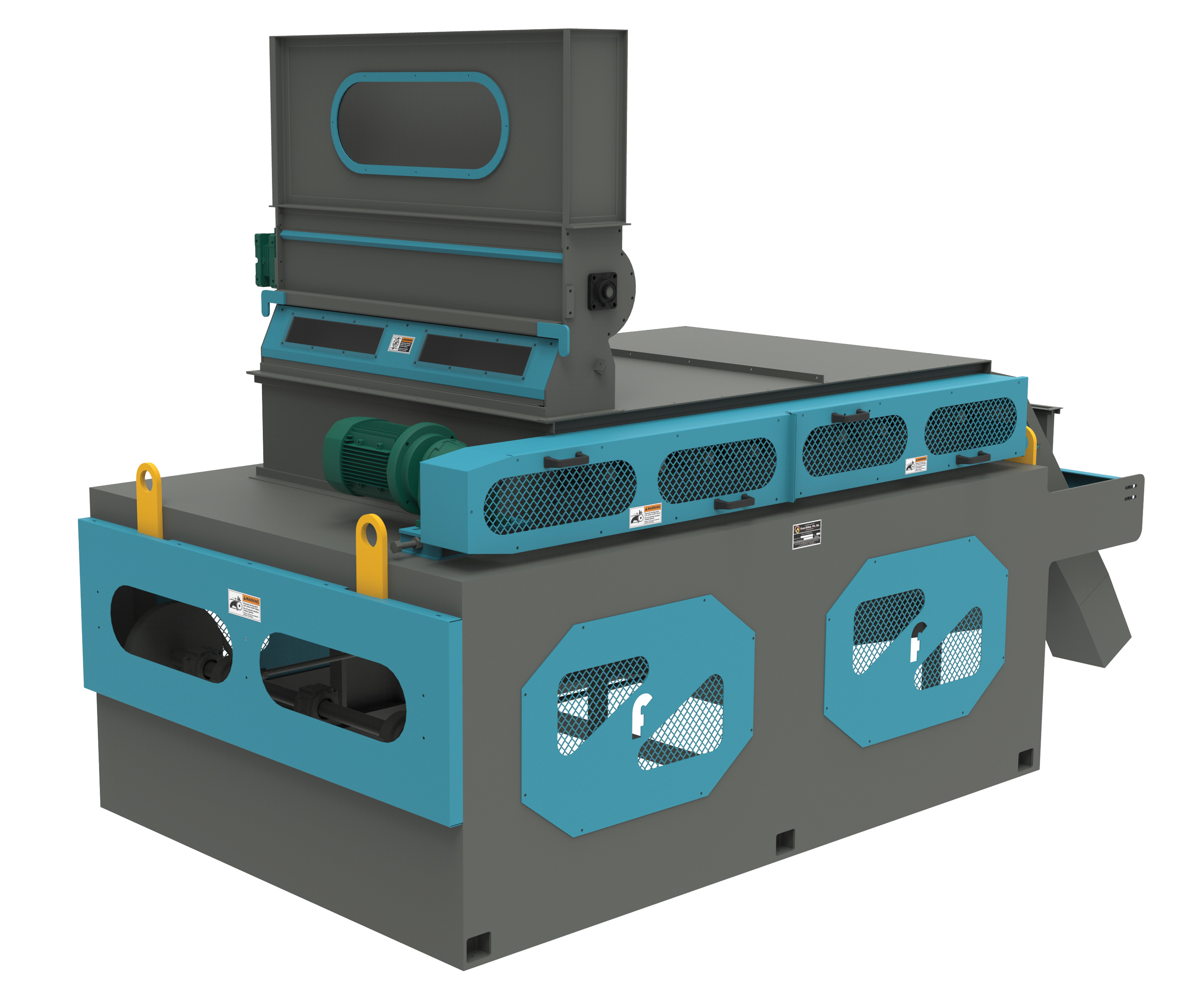

FX-HP : Hulls Purifier
FX- Hulls Purifier machine is basically used for cotton, sunflower, final hulls purification which results in minimal oil losses in hulls. Hulls purifier produces minimum oiled hulls by removing fine meats from the hulls. It is capable of handling capacity up to 200 tons per day (on white seed basis). Machine consists of 10 basket beaters, mounted above shaker tray.
| Technical Specification | ||||||
| Model | Capacity | Motor HP | Dimensions (L x B x H) | |||
|---|---|---|---|---|---|---|
| FX-HP 100 | 100 | 8 HP | 4.0 x 1.8 x 2.3 mtr. | |||
| FX-HP 150 | 150 | 11 HP | 4.0 x 2.3 x 2.3 mtr. | |||
| FX-HP 200 | 200 | 11.5 HP | 4.0 x 2.3 x 2.3 mtr. | |||
| FX-HP 250 | 250 | 15 HP | 4.0 x 2.3 x 2.3 mtr. | |||
Note : The mentioned capacity depends on the input seed parameters.
Key Features
The precise feed rate control ensures through VFD provide optimal accuracy, enhancing the overall efficiency of subsequent operations.
Basket beater driven by VFD ensures precise initial torque control for the compound drive system of basket beaters.
The reengineered basket beater is precisely fabricated for easy maintenance and smooth opening and closing.
The apply all the bearings over rotating parts are SKF, NTN and FAG etc, which allows low power requirement.
Adjustable Air Damper Allows precise control of air flow for optimal performance.
Zero Speed Sensors ensure precise accidental monitoring for the compound drive system.
Self-Cleaning Screen : Mounted on the tray to ensure hassle-free operation and prevent material buildup for consistent performance.
Heavy-Duty Eccentric System : Engineered for the shaker tray to enhance durability, ensure smooth operation, and extend operational life.
Safety guards with limit switches mitigate accident risks from rotating parts by triggering an instant shutdown if opened.
Built with a robust structure that ensures zero vibration for stable operation.
Providing Inspection windows for clear internal separation visibility.
Easy-access hand hole & manhole for easy inspection and maintenance
The provision of belt drive transmission for the compound drive basket beater ensures maximum efficiency and reliability, delivering optimal power transfer with zero failure.
