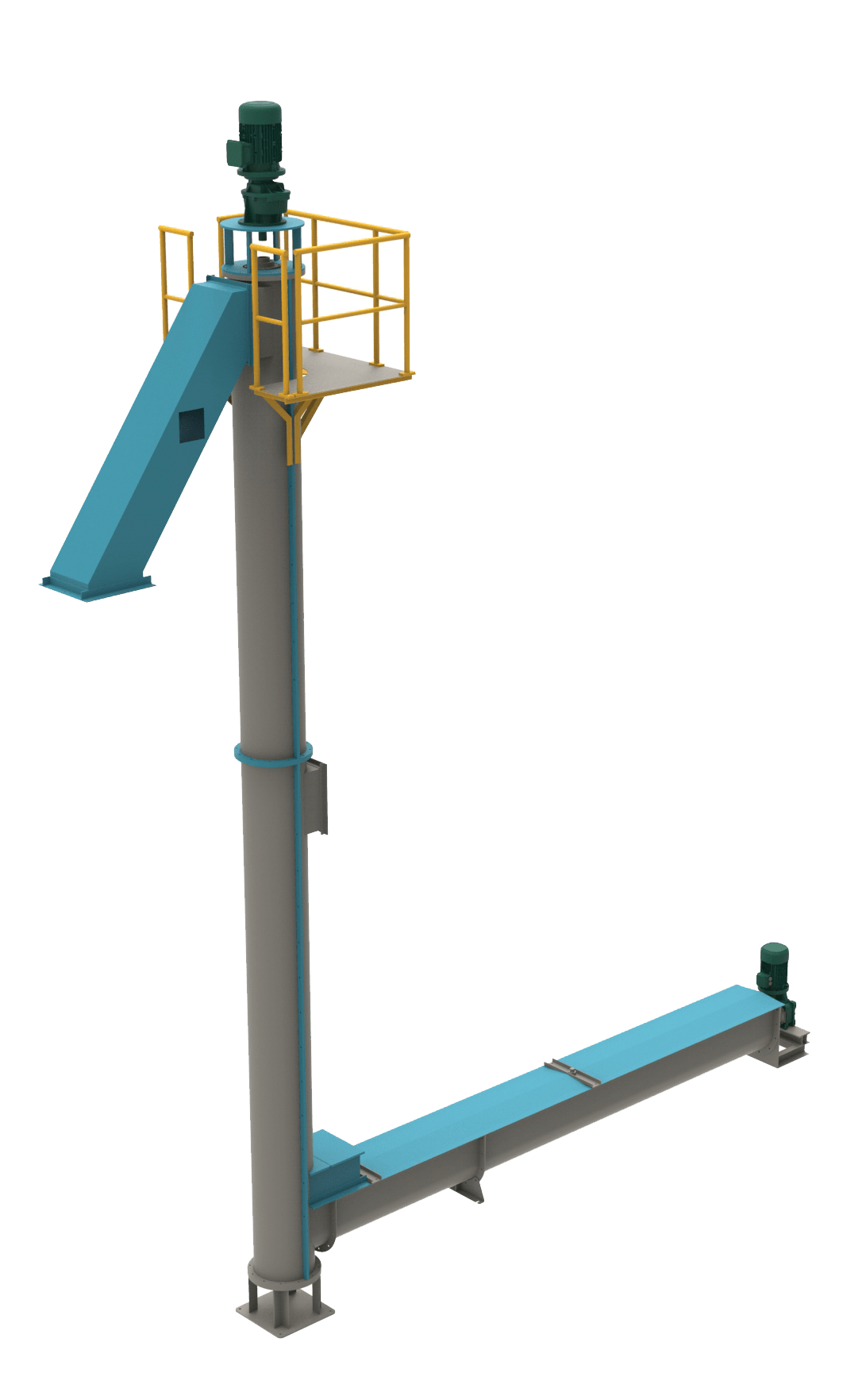

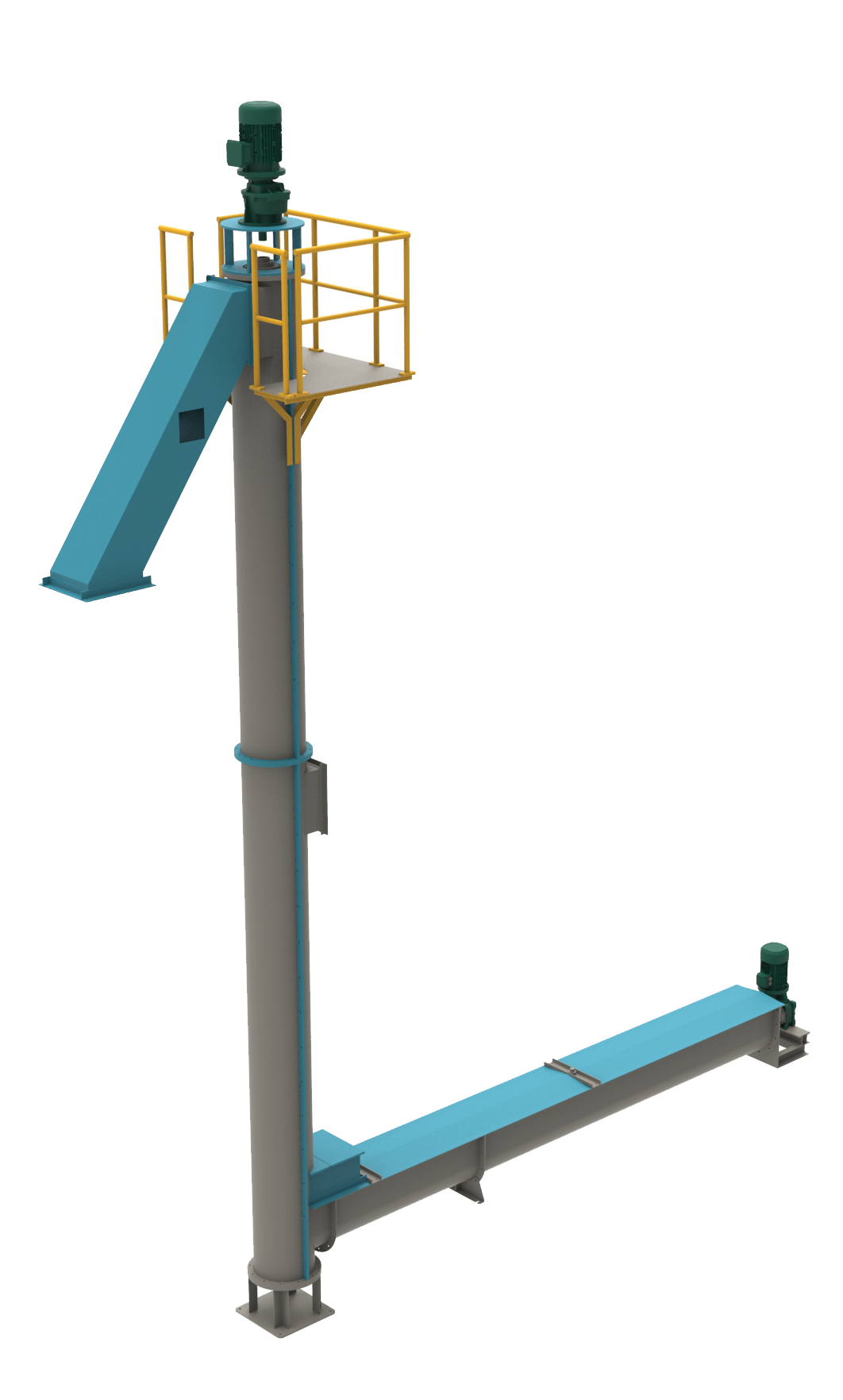

FX-Rotor Lift
Rotor lifts are an efficient method for elevating a variety of bulk materials from steep inclines to completely vertical. The compact design allows the vertical screw conveyor to fit almost any plant layout. With minimum moving parts, the vertical screw conveyor is a cost-effective and dependable component of any bulk material handling process.
Ferro designs Rotor lift to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Wood Products and Wastewater Treatment.
Ferro Rotor lifts are available in many configurations. Inlet sections can be offset to either side or can be in-line. Horizontal feed conveyors are required to accurately meter bulk materials directly to the vertical conveyor’s inlet for maximum efficiency.
Advantages:
- The minimum of stagnant material as often found in a bucket elevator boot.
- A highly efficient transfer of materials from horizontal to vertical conveying.
- The savings of valuable floor space and less overall height required.
- Positive material discharge in any desired direction.
- No material segregation or significant degradation throughout the continuing process.
- Material does not encounter seals or bearings, and the only part contacting material is rotating screw.
| Technical Specification | |||||||
| Model | Rotor-lift Diameter (mm) | Nominal Rated Capacity (m3/h) | RPM | ||||
|---|---|---|---|---|---|---|---|
|
FX-MHRL250 |
250 |
0.054 |
130-150 |
||||
|
FX-MHRL300 |
300 |
0.11 |
130-150 |
||||
|
FX-MHRL350 |
350 |
0.16 |
130-150 |
||||
|
FX-MHRL400 |
400 |
0.26 |
130-150 |
||||
|
FX-MHRL450 |
450 |
0.38 |
130-150 |
||||
|
FX-MHRL500 |
500 |
0.49 |
130-150 |
||||
Parts:
- Motor Mount
- High-Capacity Thrust Bearing
- Discharge Head can be assembled at any angle
- Stabilizer Bearing
- High Speed Vertical Screw
- Special Pitch Tapered Double Flighting
- Expander Feeder Junction
- Synchronized (horizontal-vertical) Material Transfer
- Horizontal Feeder Screw for Metering
- Bottom Base
