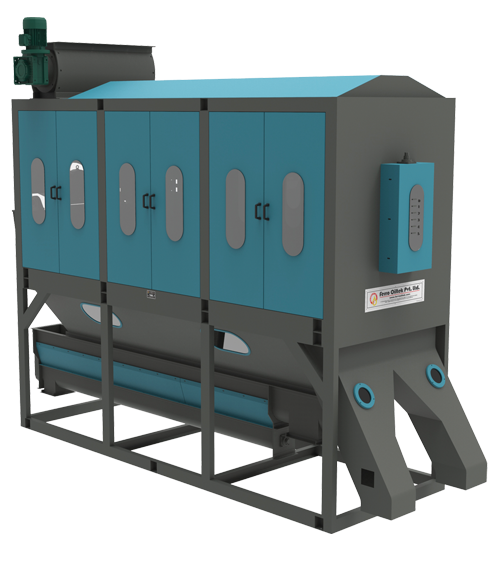

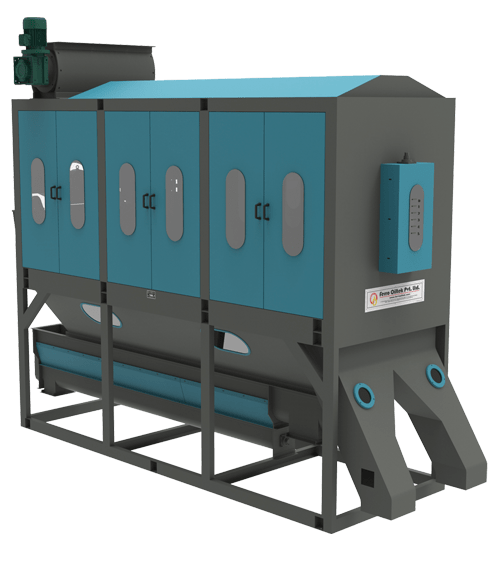

FX-RDPC:
Rotary Drum Pre-Cleaner
The Ferro Rotary Drum pre-cleaner is designed especially For handling the high contamination in cotton seed comes from ginning. It is capable of pre-cleaning the Un-Ginned Cotton Balls, Leaves, Trashes, Suspended Plastics, Bigger Impurities and Fine Dust.
Application:
For cotton seed, soya seed, sunflower seed, caster seed, rice bran and adaptable for other oilseeds with custom modificationsOperational Procedure:
The cotton seed will be Feed through a rotary feeder, from the mouth of inclined rotary drum. The seed moves in rotary action and simultaneously meshed down the seed into bigger impurities (cotton leaves, sticks, un-ginned cotton, threads, etc.) gets collected at end hopper. Further meshed down seeds are conveying through specially designed double deck conveyor. which used to mesh down the fine impurities (dust & other particles) and the remaining clean seeds gets collected at discharged end.| Technical Specification | |||
| Model | Capacity | Total HP | Dimensions (L x B x H) |
|---|---|---|---|
| FX-RDPC-100 | 100 TPD | 9 HP | 4.4 x 1.3 x 4.4 mtr |
| FX-RDPC-150 | 150 TPD | 12 HP | 5.7 x 1.7 x 4.9 mtr |
| FX-RDPC-200 | 200 TPD | 15 HP | 6.4 x 2 x 5.2 mtr |
Note : The mentioned capacity depends on the input seed parameters.
Key Features
Designed for Handling High Contamination in edible oil Seed
The precise feed rate control ensures optimal accuracy, enhancing the overall efficiency of subsequent operations.
Providing Inspection windows for clear internal separation visibility.
Designed with a heavy-duty fabricated
machine body frame.
The main rotary drum drive by a Bonfiglioli high-torque gearbox for smooth operation and longevity.
Suitable for Removing oversize, and undersize trashes than edible oil seeds/ rice bran.
All bearings used in the rotating parts are from leading brands like SKF, NTN, FAG, etc., ensuring minimal power consumption.
Easy-access door for perforated drum inspection and maintenance
Counter brush rolls enable self-cleaning perforated drums.
